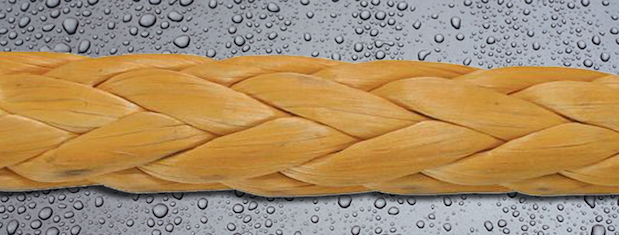

12 Strands Lankoforce®
| Diameter (mm) | Weight (kg/100m) | MBF (kN) |
|---|---|---|
| 6 | 2,3 | 35 |
| 8 | 3,9 | 62 |
| 10 | 5,9 | 97 |
| 12 | 9,3 | 137 |
| 14 | 10,6 | 184 |
| 16 | 14,3 | 244 |
| 20 | 21,5 | 374 |
| 22 | 28,0 | 450 |
| 24 | 33,5 | 533 |
| 26 | 37,5 | 612 |
| 28 | 43,5 | 701 |
| 30 | 51,5 | 789 |
| 32 | 59,0 | 887 |
| 34 | 65,0 | 991 |
| 36 | 71,0 | 1,076 |
| 40 | 88,5 | 1,314 |
| 44 | 109 | 1,559 |
| 48 | 126 | 1,853 |
| 52 | 149 | 2,160 |
| 56 | 176 | 2,490 |
| 60 | 202 | 2,820 |
| 64 | 230 | 3,210 |
| 68 | 259 | 3,610 |
| 72 | 290 | 4,010 |
| 76 | 320 | 4,250 |
| 80 | 358 | 4,510 |
| 88 | 430 | 5,320 |
| 96 | 510 | 6,230 |
| 104 | 600 | 6,800 |
| 112 | 695 | 7,810 |
| 120 | 798 | 8,870 |
| 128 | 910 | 9,970 |
| 136 | 1,030 | 11,100 |
| 144 | 1,150 | 12,400 |
Properties
Applications
Flyline
Headline
Lifeline
Lower Bridle
Ripline
Upper Bridle
Bridles
Frame Ropes
Lifeline
Ripline
Round Straps
